What is SmartBox 2

SmartBox includes GPS tracker, EMX probe and li-ion batteryall in a small magnetic waterproof box. SmartBox monitors and transmits data about surrounding environment (temperature, humidity, air pressure, tilt and 3D orientation, G-force and impacts) and also about exact GPS location of the transport. When developing SmartBox our main focus was to make it easy use. That is why SmartBox can be easily fastened to the transport so that it can’t get lost and can be charged just by placing into the docking station.

SmartBox 2 specification

  • Immediately ready for action

  • Up to 2 years battery life

  • Easy charging via a docking station

  • Water resistant
  • Built-in magnets for strong attachment
  • Slots for strap attachment
  • Real-time GPS tracking
  • Two-line OLED display for configuration, diagnostic and control of the SmartBox 2

  • Permanent route control
  • Alerts notification when exceeding preset limits
  • Temperature monitoring
  • Humidity monitoring
  • Air pressure monitoring
  • Light level monitoring
  • Tilt and 3D orientation monitoring
  • G-force monitoring
  • Impacts monitoring
  • Mobile application for android

Technical parameters

SmartBox 2

Dimensions: 95x144x33 mm (+2mm magnet)
Weight: 436g
Battery capacity: 12Ah
Battery life: Up to 2 years standby

Operational temperatures
Charging: 0 °C to 45°C
Discharging only: -20 °C to 55 °C

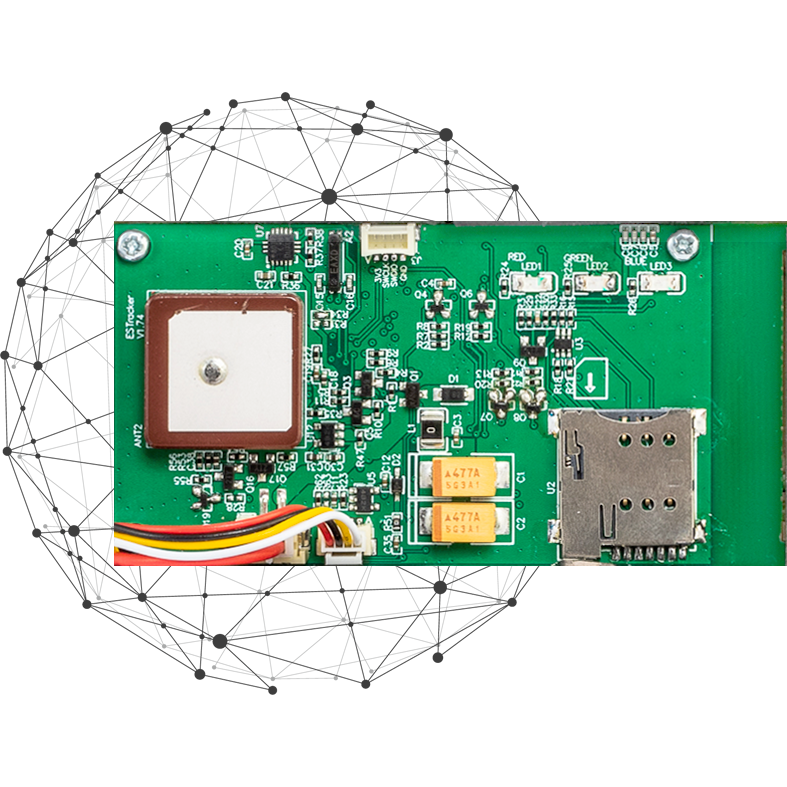

GNSS system

U-blox M10S concurrent GNSS module GPS, GLONASS, Galileo, Beidou, 72 Channels engine

  • Less than 25 mW power consumption without compromising GNSS performance
  • Maximum position availability with concurrent reception of 4 GNSS
  • Proven excellent performance, even with small antennas
  • Advanced spoofing and jamming detection

Cold start: 26 s
Hot start: 1 s
Aided Cold Start: 5 s

A-GNSS: AssistNow Online, AssistNow Offline, D-GPS, Battery backed RAM

Battery and GSM signal indicator
External GPS RMA connector (optional)

EMX probe

Temperature (-20°C ~ +60°C, tol.: 0.1 °C)
Relative humidity (0 ~100 %, tol.: 1%)
Atmospheric pressure (50 ~ 115 kPa; tol.: 0.2 kPa)
Light levels (1lx ~ 50000lx; 256 levels)
Tilt and 3D orientation (0° ~ 180°; tol.: 1°)
Impact / Free-fall counter (continuous sampling at 200 Hz)

Optional LoRa Gateway

The LoRa gateway is a Smartbox accessory designed for the wireless connection of an LRN probe or other wireless LoRa sensor. LoRa technology offers a long range for data transmission with very low energy requirements.

  • Long Range 2.4GHz transceiver

  • High sensitivity, down to -132dBm

  • +12.5dBm, High efficiency PA

  • Low energy consumption, On-chip DC-DC

  • LoRa, FLRC, (G)FSK supported modulations
  • Programmable bit rate

  • Excellent blocking immunity

  • Ranging Engine, Time-of-flight function

  • BLE PHY layer compatibility

  • Low system cost

Smart solution

When developing SmartBox we wanted to make it easy to use. SmartBox can be easily attached to the transport so that it cannot be lost and is easy to charge by placing into the charging cradle.

Two strong magnets

SmartBox has two strong magnets placed on the bottom of the case which makes attachment to any ferrous metal surface a snap– for example placing onto a vehicle frame or a shipping container.

Strap slots for attachment

SmartBox has two slots on each side so it can be easily strapped to most anything.

Charging cradle

Charge SmartBox easily by placing it into the charging cradle. The charging cradle is equipped with spring-loaded, gold-plated contacts ensuring perfect contact when charging. No need to disassemble when charging.

Environment monitoring

Internal temperature
-20°C to +60 °C
Resolution: 0.1 °C
Precision: +/- 0.5 °C
Relative humidity
0 to 100 %
Resolution: 1%
Precision: typ. +/- 2%
Atmospheric pressure
50 to 115 kPa
Resolution: 0.2 kPa
Precision: typ. +/- 1kPa
Light levels
1lx to 50000lx
256 levels
Spectral range
430 to 610 nm
Tilt & 3D orientation
0 to 180°
Resolution: 1 degree
Impact / Free-fall counter
Continuous sampling at 200 Hz
